Entry level platform to start with PXI Express

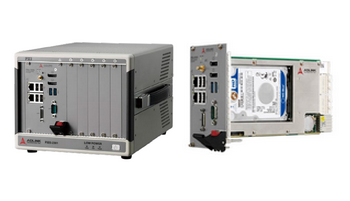

The ADLINK PXES-2301 compact 6-slot PXI Express chassis, compliant with PXI Express and cPCI Express specifications, provides one system slot with three expansion slots and five hybrid peripheral slots, supporting a wide variety of enhanced-bandwidth testing and measurement applications. The hybrid-slot design accepts installation of CompactPCI, PXI, CompactPCI Express, and PXI Express modules in any peripheral slot for maximum flexibility. Built on a four-link PXI Express chassis with 8GB/s system bandwidth, the PXES-2301's peripheral slots are all connected with PCIe gen2 x4, with slot bandwidth up to 2GB/s. The PXES-2301 implements a smart system monitoring controller, reporting full chassis status including fan speed, system voltages, and internal temperature.
Datasheet can be downloaded HERE.

The ADLINK PXIe-3935 PXI Express embedded controller, based on the Intel® Celeron® 2000E 2.2GHz processor, matches superior performance with an unprecedented price point. Specifically conceived for hybrid PXI Express-based testing systems, the ADLINK PXIe-3935 delivers a rugged and stable platform for a wide variety of testing and measurement applications. The ADLINK PXIe-3935 provides ample interface flexibility, including two DisplayPort connectors, allowing connection to two monitors, dual USB 3.0 connections for high speed peripheral devices, dual Gigabit Ethernet ports, with one for LAN connection and the other for controlling LXI instruments, four USB 2.0 ports for peripheral devices and USB instrument control, a Micro-D GPIB connector for GPIB instrument connection, and one RS-232/422/485 D-SUB9 connector for hybrid PXI-based testing systems control.
Datasheet can be downloaded HERE.
