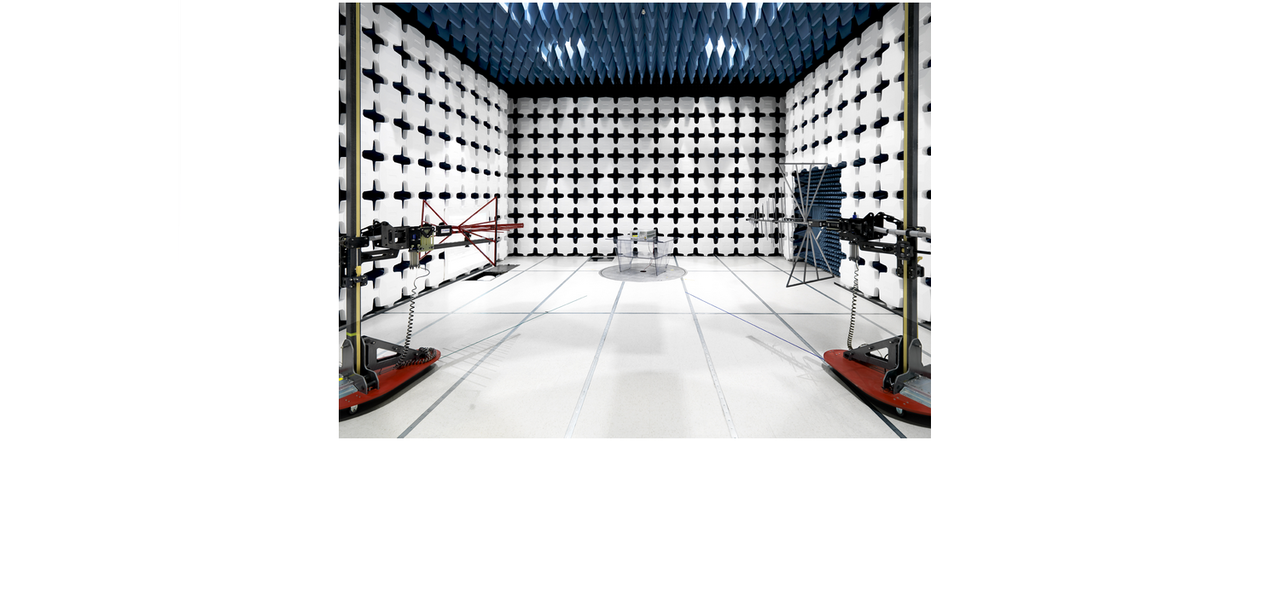

EMC measurement in the field and lab

19.10.2021 06:47

New EMC test option (opt. 361) for Keysight FieldFox spectrum analyzers transforms this handheld devices into powerful EMC analyzers. The set of EMC measurement features includes:

CISPR bandwidth filters 200 Hz, 9 kHz, 120 kHz and 1 MHz
CISPR detectors – peak, quasi-peak, EMI average
APD measurement (Amplitude Probability Distribution)
Supported CISPR bands A/B/C/D/E

To identify really all sources of EM disturbance FieldFox offers function of Real-Time Spectrum Analyzer (RTSA) thanks to which also very short and random disturbance signals can be found.

Detailed technical specifications of Keysight FieldFox spectrum analyzers can be found HERE.
